autowisp.database.data_model package

Class Inheritance Diagram

Inheritance diagram of Condition, ConditionExpression, Configuration, DDL, DataModelBase, HDF5Attribute, HDF5DataSet, HDF5Link, HDF5Product, HDF5StructureVersion, Image, ImageProcessingProgress, ImageType, InputMasterTypes, LightCurveProcessingProgress, LightCurveStatus, MasterFile, MasterType, ObservingSession, Parameter, ProcessedImages, ProcessingSequence, Step, StepDependencies, Target

Add all tables to __all__.

class autowisp.database.data_model.Condition(**kwargs)[source]

Bases: DataModelBase

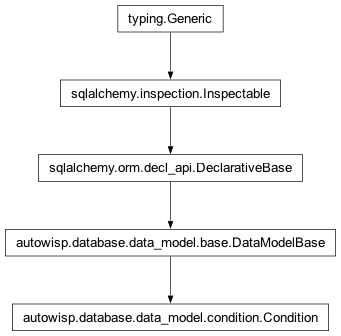

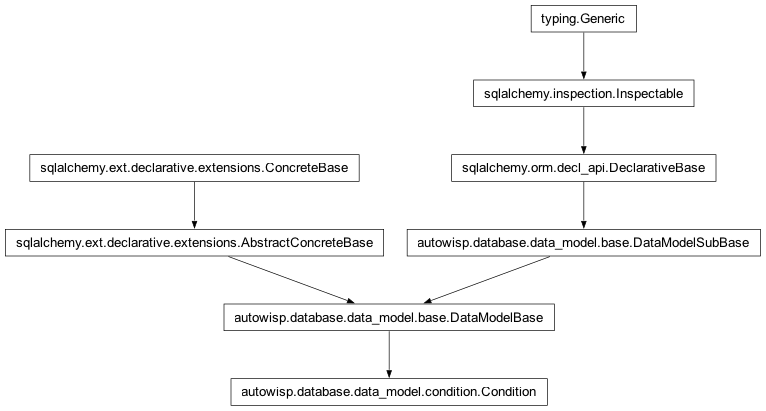

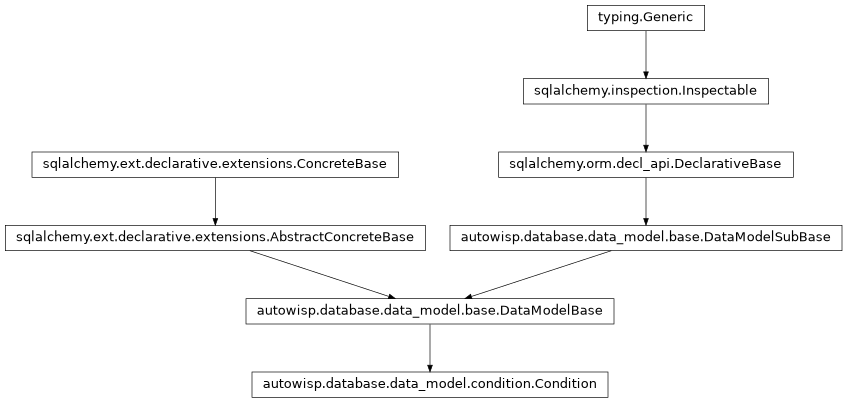

Inheritance diagram of autowisp.database.data_model.Condition

The table describing the Conditions for given configuration to apply.

Each condition is a combination of condition expressions that must all be satisfied simultaneously for the condition to be considered satisfied.

expression

expression_id: The id of the condition expression that is part of this condition.

id: A unique identifier for each row.

notes: Any user supplied notes describing the condition.

timestamp: When record was last changed

class autowisp.database.data_model.ConditionExpression(**kwargs)[source]

Bases: DataModelBase

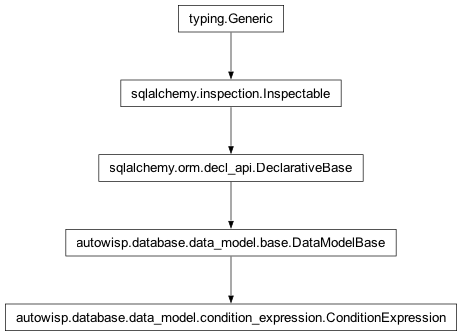

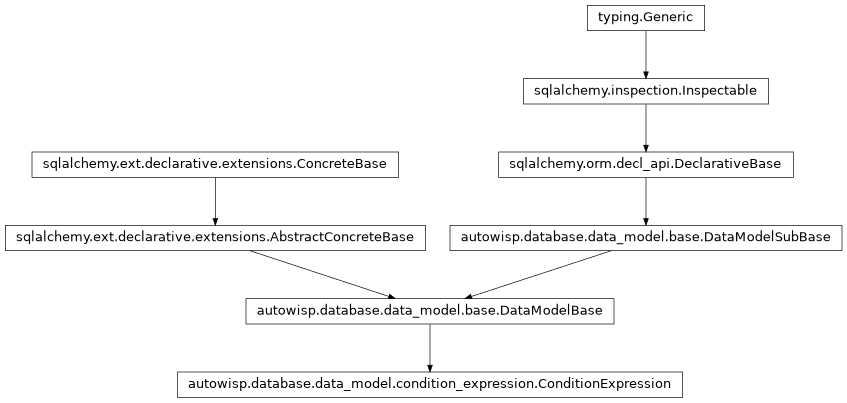

Inheritance diagram of autowisp.database.data_model.ConditionExpression

The table describing the Condition Expressions

expression: The expression to evaluate to determine if an image meets the condition.

id: A unique identifier for each row.

notes: Any user supplied notes describing the condition expression.

timestamp: When record was last changed

class autowisp.database.data_model.Configuration(**kwargs)[source]

Bases: DataModelBase

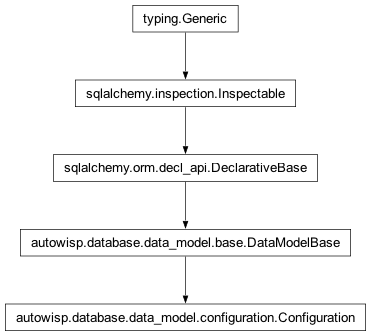

Inheritance diagram of autowisp.database.data_model.Configuration

Table recording the values of the pipeline configuration parameters.

condition_expressions

condition_id: The id of the condition that must be met for this configuration to apply

conditions: Mapped[List[Condition]]

id: A unique identifier for each row.

notes: Any user supplied notes describing the configuration.

parameter

parameter_id: The name of the configuration parameter.

timestamp: When record was last changed

value: The value of the configuration parameter for the given version for images satisfying the given conditions.

version: The version of the configuration parameter. Later versions fall back on earlier versions if an entry for the parameter is not found.

class autowisp.database.data_model.HDF5Attribute(**kwargs)[source]

Bases: DataModelBase

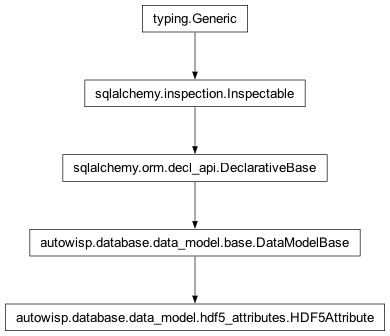

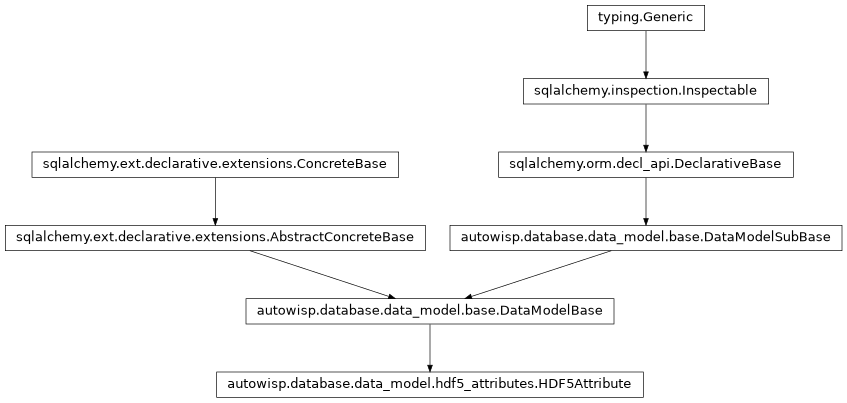

Inheritance diagram of autowisp.database.data_model.HDF5Attribute

The table describing how to add attributes in HDF5 files.

__str__()[source]: Print the contents of the given attribute.

description: A brief description of what this attribute tracks.

dtype: The data type to use for this dataset. See h5py for possible values and their meanings.

hdf5_structure_version_id: Which structure version of which pipeline product is this element configuration for.

id: A unique identifier for each row.

name: The name to give to use for this attribute within the HDF5 file.

parent: The full absolute path to the group or dataset to add this attribute to.

pipeline_key: How is this attribute referred to by the pipeline.

structure_version

timestamp: When record was last changed

class autowisp.database.data_model.HDF5DataSet(**kwargs)[source]

Bases: DataModelBase

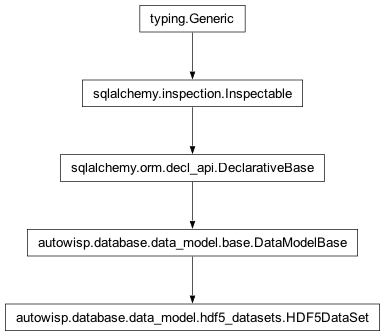

Inheritance diagram of autowisp.database.data_model.HDF5DataSet

The table describing how to include datasets in HDF5 files.

__str__()[source]: Human readable description.

abspath: The full absolute path to the dataset within the HDF5 file.

compression: If not NULL, which compression filter to use when creating the dataset.

compression_options: Any options to pass to the compression filter. For gzip, this is passed as int(compression_options).

description: A brief description of what this attribute tracks.

dtype: The data type to use for this dataset. See h5py for possible values and their meanings.

hdf5_structure_version_id: Which structure version of which pipeline product is this element configuration for.

id: A unique identifier for each row.

pipeline_key: How is this dataset referred to by the pipeline.

replace_nonfinite: For numeric datasets, if this is not NULL, any non-finite values are replaced by this value.

scaleoffset: If not null, enable the scale/offset filter for this dataset with the specified precision.

shuffle: Should the shuffle filter be enabled?

structure_version

timestamp: When record was last changed

class autowisp.database.data_model.HDF5Link(**kwargs)[source]

Bases: DataModelBase

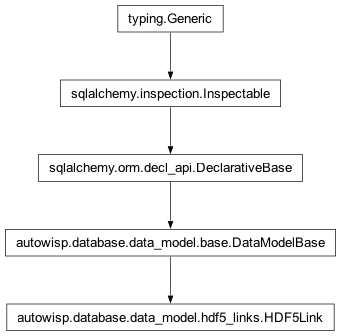

Inheritance diagram of autowisp.database.data_model.HDF5Link

Table describing links of chosen versions of products in HDF5 files.

abspath: The full absolute path to the link in the HDF5 file.

description: A brief description of what this attribute tracks.

hdf5_structure_version_id: Which structure version of which pipeline product is this element configuration for.

id: A unique identifier for each row.

pipeline_key: How is this link referred to by the pipeline.

structure_version

target: The full absolute path the link should point to.

timestamp: When record was last changed

class autowisp.database.data_model.HDF5Product(**kwargs)[source]

Bases: DataModelBase

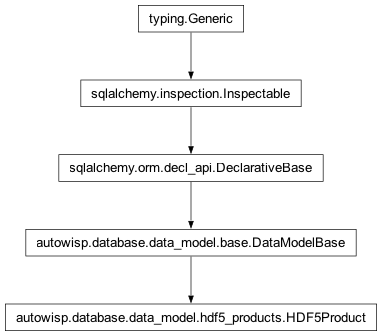

Inheritance diagram of autowisp.database.data_model.HDF5Product

The types of pipeline products stored as HDF5 files.

description: A description of the product type.

id: A unique identifier for each row.

pipeline_key: How is this product referred to in the pipeline (e.g. “datareduction” or “lightcurve”

structure_versions

timestamp: When record was last changed

class autowisp.database.data_model.HDF5StructureVersion(**kwargs)[source]

Bases: DataModelBase

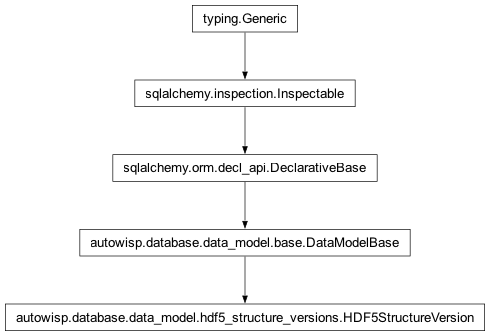

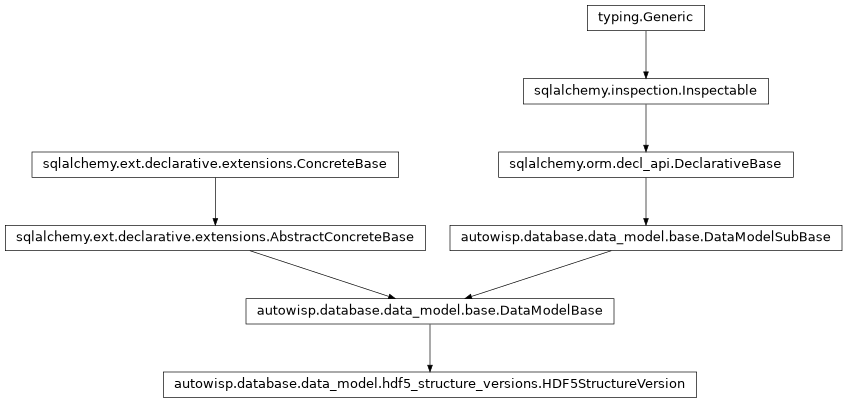

Inheritance diagram of autowisp.database.data_model.HDF5StructureVersion

The versions of structures for the HDF5 pipeline products.

attributes

datasets

hdf5_product_id: The type of pipeline product this structure configuration version is for.

id: A unique identifier for each row.

links

product

timestamp: When record was last changed

version: An identifier for distinguishing the separate configuration versions of a single pipeline product type.

class autowisp.database.data_model.Image(**kwargs)[source]

Bases: DataModelBase

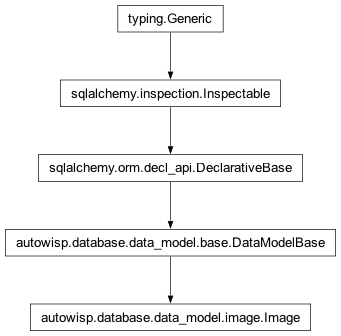

Inheritance diagram of autowisp.database.data_model.Image

The table describing the image specified

id: A unique identifier for each row.

image_type

image_type_id: The id of the image type

notes: The notes provided for the image

observing_session

observing_session_id: The id of the observing session

processing: Mapped[List[ProcessedImages]]

raw_fname: The full path of the raw image

timestamp: When record was last changed

class autowisp.database.data_model.ImageProcessingProgress(**kwargs)[source]

Bases: DataModelBase

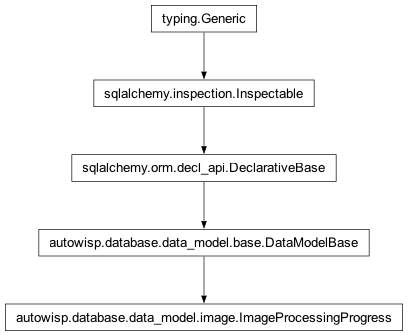

Inheritance diagram of autowisp.database.data_model.ImageProcessingProgress

The table describing the Image Processing Progress

applied_to: Mapped[List[ProcessedImages]]

configuration_version: config version of image

finished: The time processing is known to have ended (NULL if possibly still on-going)

host: Hostname or other identifier of the computer where processing is/was done

id: A unique identifier for each row.

image_type

image_type_id: The id of the image type being processed

notes: Any user supplied notes about the processing.

process_id: Identifier of the process performing this calibration step

started: The time processing started

step

step_id: Id of the step that was applied

timestamp: When record was last changed

class autowisp.database.data_model.ImageType(**kwargs)[source]

Bases: DataModelBase

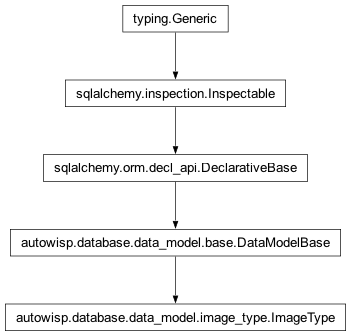

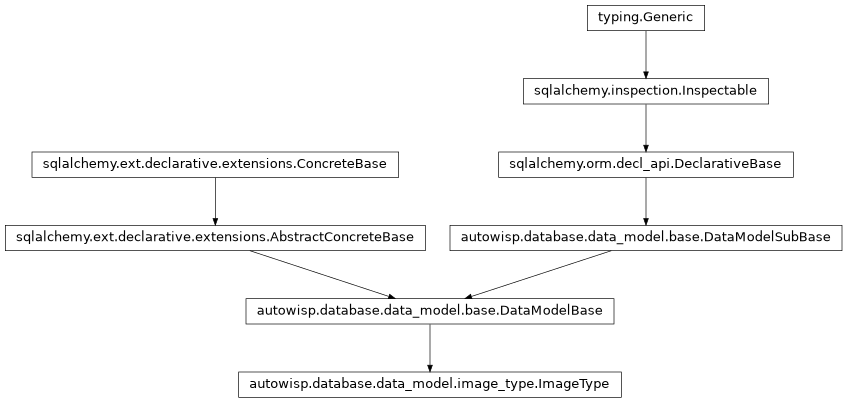

Inheritance diagram of autowisp.database.data_model.ImageType

The table describing the different image types.

description: The description of the image type

id: A unique identifier for each row.

image

name: The image type name

timestamp: When record was last changed

class autowisp.database.data_model.InputMasterTypes(**kwargs)[source]

Bases: DataModelBase

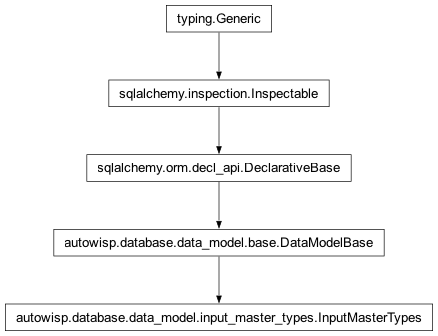

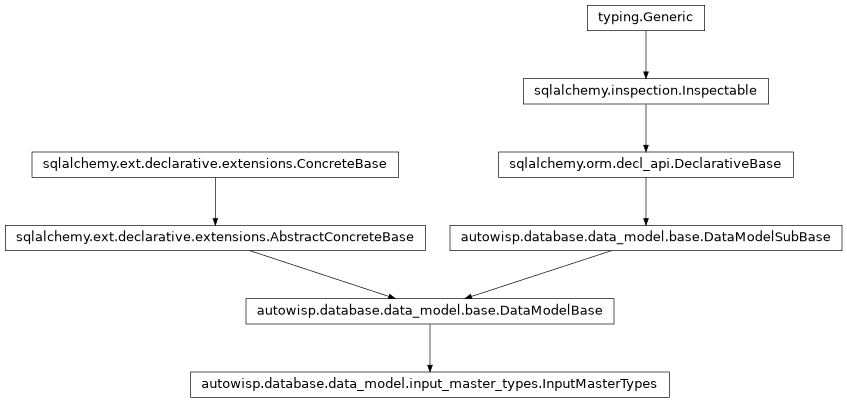

Inheritance diagram of autowisp.database.data_model.InputMasterTypes

The table describing the prerequisites for a step to run

config_name: The name of the configuration parameter that specifies the master when running the specified step.

id: A unique identifier for each row.

image_type

image_type_id: The image type for which this prerequisite applies.

master_type

master_type_id: The master type required for the step to run.

optional: Can processing by the given step of the given types of images can proceed if the given type of master is not found?

step

step_id: The step for which this prerequisite applies.

timestamp: When record was last changed

class autowisp.database.data_model.LightCurveProcessingProgress(**kwargs)[source]

Bases: DataModelBase

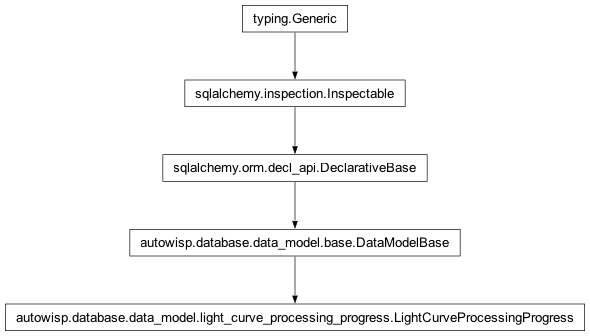

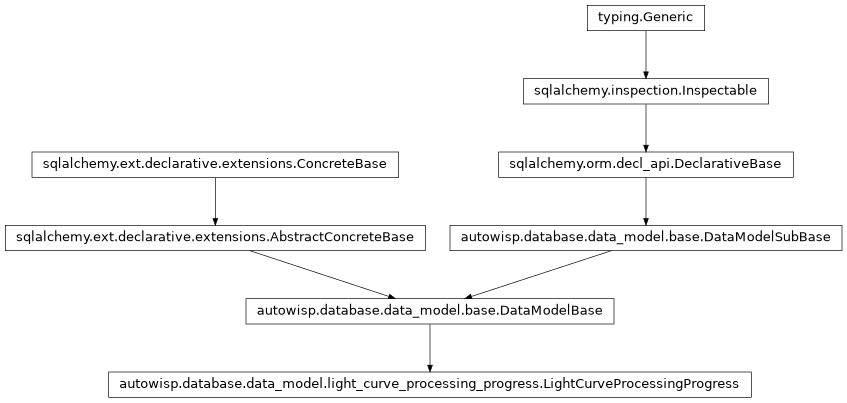

Inheritance diagram of autowisp.database.data_model.LightCurveProcessingProgress

The table describing the light curve processing progress

configuration_version: config version of image

final: Is this the final processing status? The only case where status=1 is not final is for magnitude fitting, where there may be additional iterations needed.

finished: The time processing is known to have ended (NULL if possibly still on-going)

host: Hostname or other identifier of the computer where processing is/was done

id: A unique identifier for each row.

notes: Any user supplied notes about the processing.

process_id: Identifier of the process performing this calibration step

single_photref_id: The ID of the single photometric reference for which LC points were processed.

sphotref

started: The time processing started

step

step_id: Id of the step that was applied

timestamp: When record was last changed

class autowisp.database.data_model.LightCurveStatus(**kwargs)[source]

Bases: DataModelBase

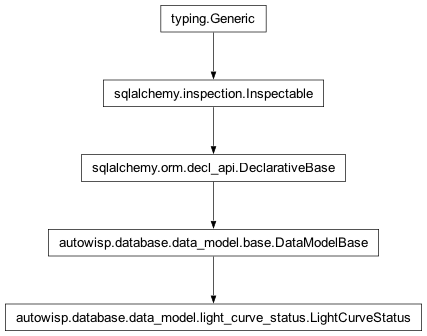

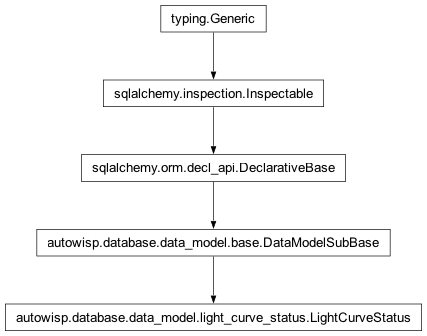

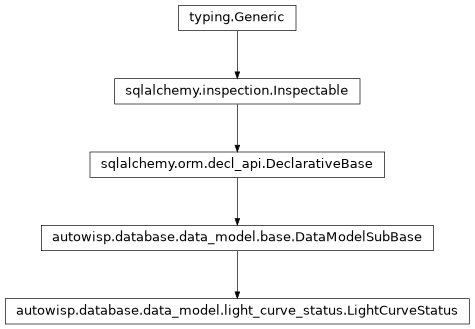

Inheritance diagram of autowisp.database.data_model.LightCurveStatus

Table tracking the status of lightcurves for interrupted steps.

id: A unique identifier for each row.

processing

progress_id: The ID of the LC processing progress which was interrupted

status: The status of the processing (0 = started, >0 = successfully saved progress, negative values indicate various reasons for failure).

timestamp: When record was last changed

class autowisp.database.data_model.MasterFile(**kwargs)[source]

Bases: DataModelBase

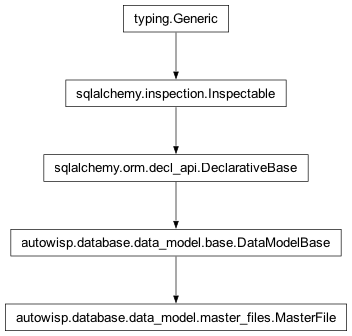

Inheritance diagram of autowisp.database.data_model.MasterFile

The table tracking master files generated and used by the pipeline.

enabled: Can this master be used for calibrations?

filename: The full path of the master file.

id: A unique identifier for each row.

master_type

progress_id: The ImageProcessingProgress or LightCurveProcessingProgress that generated this master, if any.

timestamp: When record was last changed

type_id: The type of master file.

use_smallest: Use the master of this type for which this expression evaluated against image header gives the smallest value

class autowisp.database.data_model.MasterType(**kwargs)[source]

Bases: DataModelBase

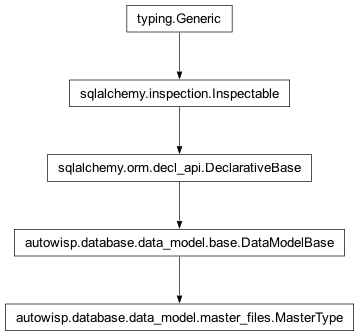

Inheritance diagram of autowisp.database.data_model.MasterType

The table tracking the types of master files used by the pipeline.

condition_id: The collection of expression involving header keywords that must match between an image and a master for a master to be useable for calibrating that image.

description: A description of the master file type.

id: A unique identifier for each row.

maker_image_split_condition_id: The collection of expression involving header keywords that must match between all images that are combined into a master in addition to the expressions specified by condition_id.

maker_image_type_id: The image type to which the maker step is applied when creating masters of this type.

maker_step_id: The step which produces this type of master frames.

master_files

match_expressions: Mapped[List[ConditionExpression]]

name: The name of the master file type.

split_expressions: Mapped[List[ConditionExpression]]

timestamp: When record was last changed

class autowisp.database.data_model.ObservingSession(**kwargs)[source]

Bases: DataModelBase

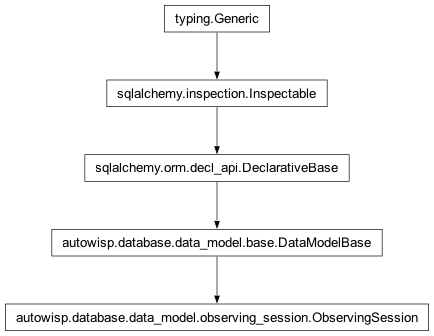

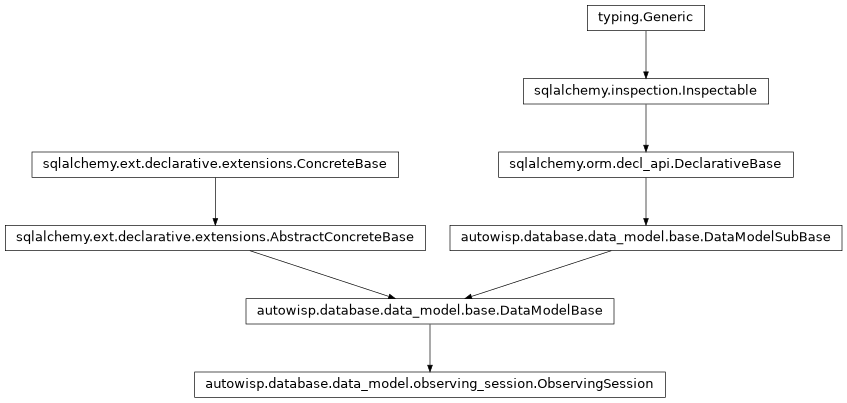

Inheritance diagram of autowisp.database.data_model.ObservingSession

The table describing the observing session

camera

camera_id: The id of the camera

end_time_utc: The end time of the observing session in UTC

id: A unique identifier for each row.

images

label: Unique label assigned to the observing session

mount

mount_id: The id of the mount

notes: The notes provided for the observing session

observatory

observatory_id: The id of the observatory

observer

observer_id: The id of the observer

start_time_utc: The start time of the observing session in UTC

target

target_id: The id of the target

telescope

telescope_id: The id of the telescope

timestamp: When record was last changed

class autowisp.database.data_model.Parameter(**kwargs)[source]

Bases: DataModelBase

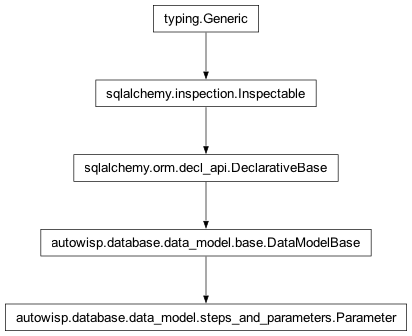

Inheritance diagram of autowisp.database.data_model.Parameter

Table describing the configuration parameters needed by the pipeline.

description: Description of what the step does.

id: A unique identifier for each row.

name: The name of the step within the pipeline.

steps: Mapped[List[Step]]

timestamp: When record was last changed

class autowisp.database.data_model.ProcessedImages(**kwargs)[source]

Bases: DataModelBase

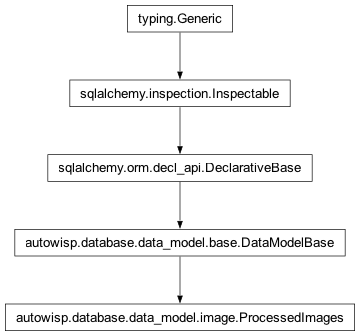

Inheritance diagram of autowisp.database.data_model.ProcessedImages

The table describing the processed images/channels by each step.

channel: The channel of the image that was processed.

final: Is this the final processing status? The only case where status=1 is not final is for magnitude fitting, where there may be additional iterations needed.

id: A unique identifier for each row.

image

image_id: The image that was processed.

processing

progress_id: The id of the processing progress

status: The status of the processing (0 = started, >0 = successfully saved progress, negative values indicate various reasons for failure). The meaning of negative values is step dependent. For most steps 1 is the final status, but for magnitude fitting the value indicates the iteration.
