autowisp.database.data_model.image module

Class Inheritance Diagram

Inheritance diagram of Boolean, Column, DataModelBase, Double, ForeignKey, Image, ImageProcessingProgress, Index, Integer, Mapped, ProcessedImages, String, TIMESTAMP

Define the image table for the pipeline

class autowisp.database.data_model.image.Image(**kwargs)[source]

Bases: DataModelBase

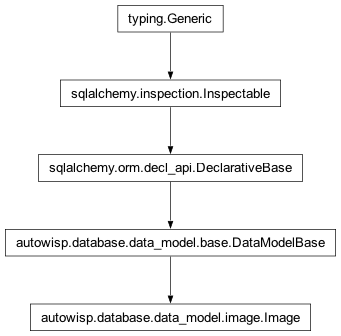

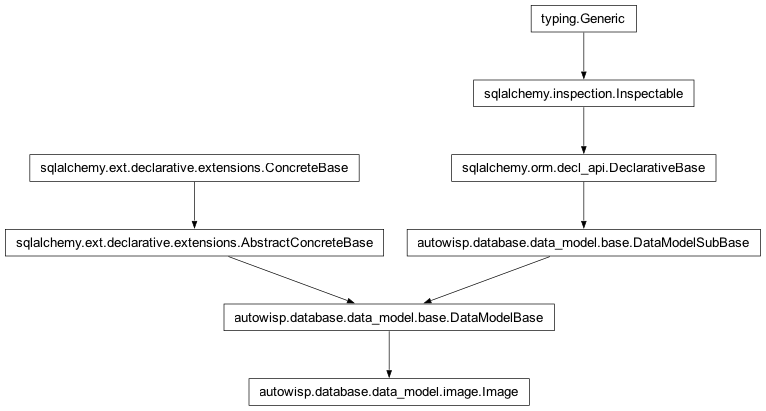

Inheritance diagram of autowisp.database.data_model.image.Image

The table describing the image specified

diagnostics: Mapped[List['ImageDiagnostics']]

id: A unique identifier for each row.

image_type

image_type_id: The id of the image type

jd: Mid-exposure Julian date of the observation

notes: The notes provided for the image

observing_session

observing_session_id: The id of the observing session

photometry_diagnostics: Mapped[List['PhotometryDiagnostics']]

processing: Mapped[List[ProcessedImages]]

raw_fname: The full path of the raw image

timestamp: When record was last changed

class autowisp.database.data_model.image.ImageProcessingProgress(**kwargs)[source]

Bases: DataModelBase

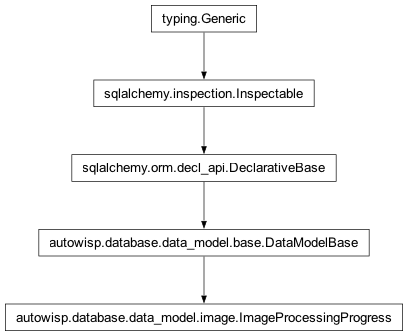

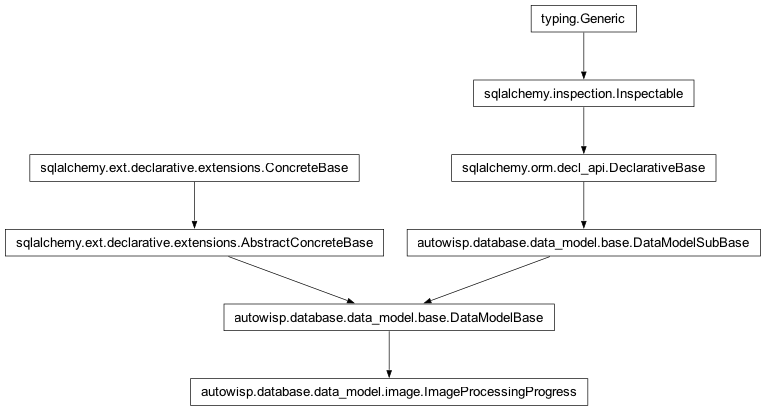

Inheritance diagram of autowisp.database.data_model.image.ImageProcessingProgress

The table describing the Image Processing Progress

applied_to: Mapped[List[ProcessedImages]]

configuration_version: config version of image

finished: The time processing is known to have ended (NULL if possibly still on-going)

id: A unique identifier for each row.

image_type

image_type_id: The id of the image type being processed

notes: Any user supplied notes about the processing.

run

run_id: The id of the pipeline run that this processing is part of

started: The time processing started

step

step_id: Id of the step that was applied

timestamp: When record was last changed

class autowisp.database.data_model.image.ProcessedImages(**kwargs)[source]

Bases: DataModelBase

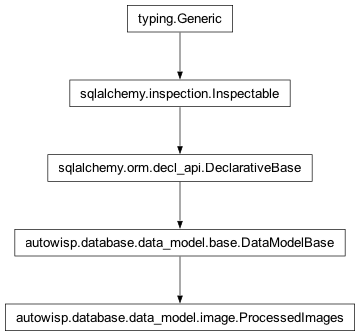

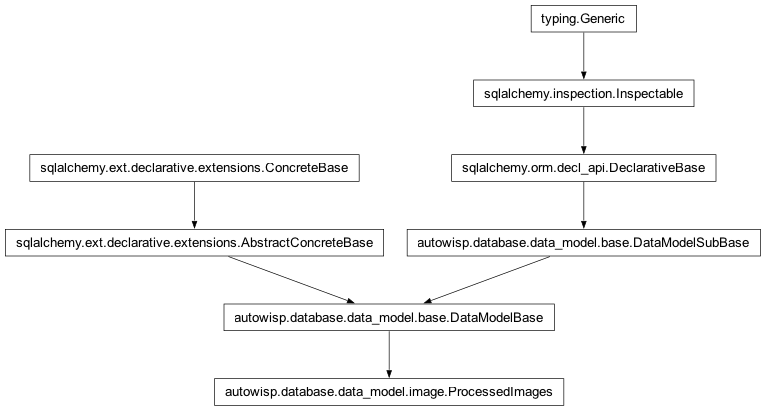

Inheritance diagram of autowisp.database.data_model.image.ProcessedImages

The table describing the processed images/channels by each step.

channel: The channel of the image that was processed.

final: Is this the final processing status? The only case where status=1 is not final is for magnitude fitting, where there may be additional iterations needed.

id: A unique identifier for each row.

image

image_id: The image that was processed.

processing

progress_id: The id of the processing progress

status: The status of the processing (0 = started, >0 = successfully saved progress, negative values indicate various reasons for failure). The meaning of negative values is step dependent. For most steps 1 is the final status, but for magnitude fitting the value indicates the iteration.

timestamp: When record was last changed
