autowisp.database.data_model.hdf5_attributes module

Class Inheritance Diagram

Inheritance diagram of Column, DataModelBase, ForeignKey, HDF5Attribute, Index, Integer, String

Define the hdf5_attributes table.

class autowisp.database.data_model.hdf5_attributes.HDF5Attribute(**kwargs)[source]

Bases: DataModelBase

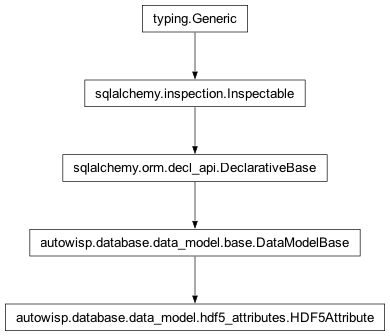

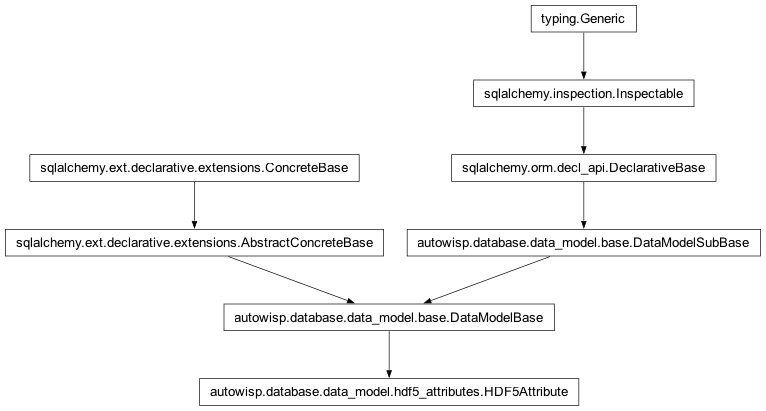

Inheritance diagram of autowisp.database.data_model.hdf5_attributes.HDF5Attribute

The table describing how to add attributes in HDF5 files.

__str__()[source]: Print the contents of the given attribute.

description: A brief description of what this attribute tracks.

dtype: The data type to use for this dataset. See h5py for possible values and their meanings.

hdf5_structure_version_id: Which structure version of which pipeline product is this element configuration for.

id: A unique identifier for each row.

name: The name to give to use for this attribute within the HDF5 file.

parent: The full absolute path to the group or dataset to add this attribute to.

pipeline_key: How is this attribute referred to by the pipeline.

structure_version

timestamp: When record was last changed
