autowisp.database.migrate module

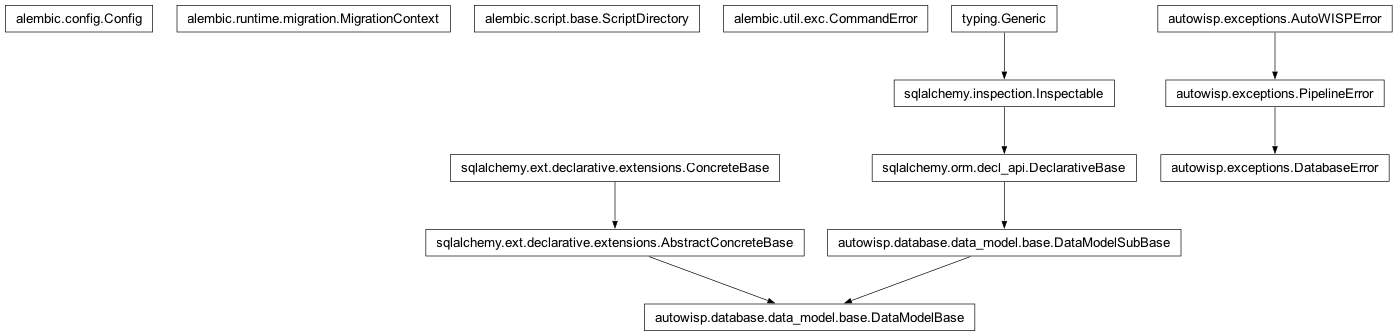

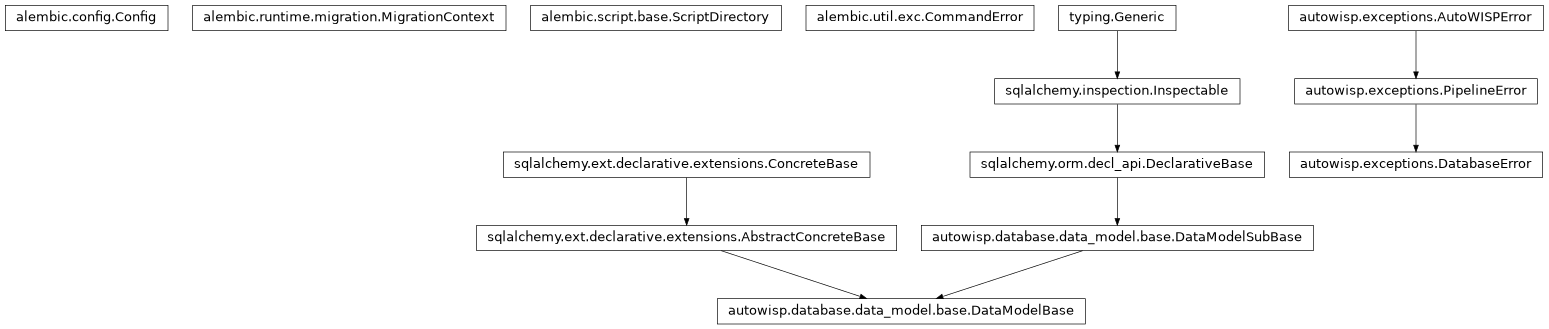

Class Inheritance Diagram

Apply and check Alembic migrations for a project database.

Alembic supplies the revision graph, the alembic_version table, stamping and SQLite batch mode. What it does not supply, and what this module is mostly about, is when and where migrations run:

• check_project_schema() is read-only and is what autowisp.database.interface.set_project_home() calls. Every process opening a project runs it, including every pipeline worker, so it must never issue DDL – dozens of workers racing to CREATE INDEX is the failure this split exists to prevent. A database behind head fails loudly here instead of misbehaving later.

• migrate_project() is the only thing that mutates, and is called from the browser interface when a project is selected, from wisp-migrate, and once from the main process of a pipeline run.

The revision chain is kept strictly linear (a test asserts it), so the singular Alembic APIs are used throughout: get_current_revision and get_current_head rather than their plural counterparts. Both raise if a fork ever reaches them, which is the behaviour wanted – a fork is a mistake to surface, not a state to support.

See project_db_migrations_plan.md for the reasoning.

autowisp.database.migrate.BASELINE_REVISION = '0001_baseline'

Revision marking the schema _apply_additive_migrations() produces.

autowisp.database.migrate._alembic_config()

Return the shipped Alembic configuration.

autowisp.database.migrate._apply_additive_migrations(connection)

Bring a project database that predates Alembic up to the 1.8.1 schema.

Note

This is not where new schema changes go. It is frozen at its 1.8.1 contents and is called from exactly one place – migrate_project(), on a database carrying no alembic_version table – to reach the state that 0001_baseline stamps. Everything after 1.8.1 is an Alembic revision under migrations/versions.

It survives rather than being converted into revisions because its create_all half cannot be: that is a catch-all for any table added at any point since a project was initialised, and the history of when each table appeared is not recorded anywhere. Expressing it as revisions would mean either reconstructing that history by git archaeology, or calling create_all from inside a revision – which would create today’s tables rather than the ones contemporary with the revision, and so would silently change meaning every time a model is added.

Idempotent, so running it against an already-current database does nothing.

Takes a connection rather than an engine so it runs inside the caller’s migration lock. Opening a second connection here would block against that lock instead of cooperating with it.

Parameters:

connection – An open connection to the project database, inside a transaction held by _locked_connection().

Returns:

None

autowisp.database.migrate._backup_sqlite(engine, current)

Copy an SQLite project database aside before migrating it.

The copy is named for the revision it is a snapshot of, so autowisp.db.pre-0001_baseline is the database as it stood at 0001_baseline.

Returns the backup path, or None for a non-SQLite database, where backups are the administrator’s job (see migrate_project()).

autowisp.database.migrate._is_known_revision(revision)

Whether revision is one the installed code ships.

False means the database was migrated by a newer AutoWISP than this one, which needs different advice: upgrading the code, not running a migration this install does not have.

autowisp.database.migrate._locked_connection(engine)

Yield a connection in a transaction, with the migration lock held.

Alembic has no locking of its own – two concurrent upgrade calls both read the same revision and both run it – and concurrency is reachable here: a centralised MySQL project database serves several users at once, and starting a pipeline run while the browser interface is open is ordinary.

autowisp.database.migrate._missing_timestamp_triggers(connection)

Return {table: key_columns} for tables with no timestamp trigger.

Read-only, so the healthy case – which is every case where no revision rebuilt a table – costs two catalogue queries and no DDL.

Both backends are checked. Only SQLite loses triggers to a rebuild, but a database created before the triggers were attached off the shared metadata is missing the provenance ones whichever backend it is on.

autowisp.database.migrate._sqlite_immediate(engine)

Make this engine’s transactions take SQLite’s write lock up front.

pysqlite defers BEGIN until a DML statement, which would let two migrators both read the current revision before either writes. BEGIN IMMEDIATE takes the write lock when the transaction opens instead, so the second blocks (on the engine’s busy timeout) rather than re-running a migration that is already being applied.

Turning off the driver’s implicit transaction handling is the documented SQLAlchemy recipe for controlling SQLite’s BEGIN.

autowisp.database.migrate._stamp(connection, revision)

Record revision as applied, on the caller’s connection.

autowisp.database.migrate.check_project_schema(engine)

Raise unless the project database is at the current head revision.

Read-only by design – see the module docstring. This is what autowisp.database.interface.set_project_home() calls, so it runs in every pipeline worker and must never attempt DDL.

Parameters:

engine – The SQLAlchemy engine for the project database.

Raises:

DatabaseError – If the database is behind, ahead of, or otherwise disagrees with the installed migration scripts.

autowisp.database.migrate.create_project_schema(engine)

Build the current schema and record it as being at head.

The two halves belong together: create_all produces today’s tables directly, so the revisions describing how to get there must be marked applied rather than run. Creating the schema without stamping would leave the database looking like an un-baselined legacy project, and migrate_project() would then try to apply revisions it already satisfies.

Pairing them in one function is what stops those two steps drifting apart across the several places a project database gets created.

autowisp.database.migrate.get_head_revision()

Return the newest revision shipped with the installed code.

Cached: this is a property of the code, not of any database, and check_project_schema() runs in every worker process on every project open. Without the cache each of those would re-walk and re-import versions/.

autowisp.database.migrate.get_project_revision(engine)

Return the revision a project database is stamped at, or None.

None means the database has no alembic_version table – it predates Alembic and needs baselining.

autowisp.database.migrate.get_schema_drift(engine)

Return how engine’s schema differs from the ORM models.

Empty means they agree. This is the guard behind a duplication the design accepts deliberately: a revision may not import the models – it has to keep describing the same schema forever, while the models move – so an index or column is declared twice, once in data_model and once in the revision that creates it. Nothing stops the two drifting apart except noticing, which is what this does.

Parameters:

engine – The SQLAlchemy engine for the database to compare.

Returns:

Alembic’s autogenerate diff entries, e.g.

("add_index", Index(...)) for something the models declare and the database lacks.

Return type:

list

autowisp.database.migrate.migrate_project(engine, *, assume_backed_up=False)

Bring a project database up to the current head revision.

The only function here that mutates. Handles three cases:

• stamped – upgrade to head;

• AutoWISP tables but no alembic_version – predates Alembic, so reach a known state with _apply_additive_migrations(), stamp 0001_baseline, then upgrade;

• empty – create the schema and stamp head.

Parameters:

• engine – The SQLAlchemy engine for the project database.

• assume_backed_up (bool) – Required to migrate a server database. SQLite databases are copied aside automatically, but a MySQL/MariaDB one cannot be, and MySQL cannot roll DDL back, so proceeding without a backup has to be a deliberate choice.

Returns:

{"from": ..., "to": ..., "backup": ...}. from equals to if the database was already current. Which revisions ran in between is Alembic’s business, not something worth recomputing here.

Return type:

dict

Raises:

DatabaseError – If a server database is migrated without assume_backed_up, or the migration lock cannot be taken.

autowisp.database.migrate.restore_timestamp_triggers(connection)

Install any update-timestamp trigger the database is missing.

Brings an existing database in line with what the models would create, covering two ways it can fall behind:

SQLite cannot alter a column in place, so batch_alter_table rebuilds the table: copy, drop the original, rename the copy into place. Dropping the original takes its triggers with it, and the copy is created by the revision rather than from the models, so the after_create listeners that install them never fire. Every revision that genuinely rebuilds a table has therefore been removing that table’s trigger – upgrading a 1.8.1 database loses seven of them.

The twelve provenance tables, separately, never had one to lose: the triggers used to be attached per class discovered by data_model.import_table_definitions, whose glob does not reach into data_model/provenance. Attaching them off the shared metadata fixed that for databases created from now on; these are how the ones already on disk catch up.

This is a catch-all rather than a revision for the same reason _apply_additive_migrations() runs create_all: a revision would repair the databases damaged before it, and nothing at all after it. Running here means whatever the revisions just did, the triggers are correct when they finish – including for revisions not yet written.

The consequence of a missing one is confined to provenance: every trigger in this schema does nothing but maintain timestamp, so an affected table stopped recording when its rows last changed, and nothing computes a different answer as a result.

Parameters:

connection – An open connection, inside the caller’s migration lock where one is held.

Returns:

Names of the tables whose trigger was reinstated.

Return type:

list
