In this package, integrals of the PSF are performed by using a local polynomial approximation:

\[ \int dy \int dx PSF(x_0+x, y_0+y) dx dy \approx \int dy \int dx \sum_{m=0}^{m=M} \sum_{n=0}^{n=N} f_{m,n} x^m y^n \]

where $f_{m,n}$ could, but need not be the taylor expansion coefficients around $(x_0, y_0)$.

As a result, all that is necessary is calculating integrals of $x^my^n$ for non-negative integer $m$ and $n$.

PSF fitting and aperture photometry, correcting for the subpixel structure requires calculating the integral of the PSF over rectangles and over pieces of a circle.

Integrating rectangles

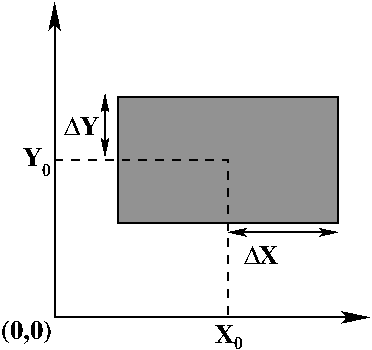

It is necessary to calculate integrals over rectangles defined as follows:

The integral over a rectangle is obviously given by:

\begin{equation} I^{rect}_{m,n}\equiv \int_{-\Delta y}^{\Delta y} dy \int_{-\Delta x}^{\Delta x} dx x^m y^n = \left\{ \begin{array}{l@{\quad}l} 0 & \mathrm{if}\ m\ \mathrm{is\ odd\ or}\ n\ \mathrm{is\ odd}\\ \frac{4\Delta x^{m+1} \Delta y^{n+1}}{(m+1)(n+1)} & \mathrm{otherwise} \end{array} \right. \end{equation}

Integrating circle wedges

Since we are using a local polynomial approximation only the following integral needs to be computed:

\begin{equation} I^{circ}_{m,n}\equiv \int_{-\Delta y}^{\Delta y} dy \int_{-\Delta x}^{\sqrt{r^2-y_0^2-y^2-2y_0y}-x_0} dx x^m y^n \end{equation}

The solution:

\begin{eqnarray} I^{circ}_{m,n} &=& \frac{1}{m+1}\Bigg\{ \sum_{i=0}^{m+1} \binom{m+1}{i} Q_{i,n} (-x_0)^{m+1-i} \nonumber\\&&{}+ (-1)^m\frac{\Delta x^{m+1} \Delta y^{n+1}}{n+1}\left[1+(-1)^n\right] \Bigg\}\\ Q_{m,n} &=& (r^2-y_0^2)Q_{m-2,n} - 2y_0Q_{m-2,n+1} - Q_{m-2,n+2}\\ Q_{0,n}=P_n^{even} &=&\frac{2}{n+1}\left\{ \begin{array}{ll} 0 &, \quad n-\mathrm{odd}\\ \Delta y^{n+1} &, \quad n-\mathrm{even}\\ \end{array} \right.\\ Q_{1,n}=P_n^{odd}&=& \frac{n-1}{n+2}(r^2-y_0^2)P_{n-2}^{odd} - \frac{2n+1}{n+2}y_0P_{n-1}^{odd}+\nonumber\\ &&{}+\frac{2\Delta y^{n-1}}{n+2}\times \left\{\begin{array}{l@{,}l} -x_0^3-3x_0\Delta x^2 & \quad n-\mathrm{even}\\ 3x_0^2\Delta x + \Delta x^3 & \quad n-\mathrm{odd}\\ \end{array}\right.\\ P_0^{odd} &=& \frac{1}{2}\left[ (y_0+\Delta y)(x_0-\Delta x) - (y_0-\Delta y)(x_0+\Delta x) \right]\nonumber\\ &&{}+ \frac{r^2}{2}\left[ \tan^{-1} \frac{x_0+\Delta x}{y_0-\Delta y} - \tan^{-1} \frac{x_0-\Delta x}{y_0+\Delta y} \right]\\ P_1^{odd} &=& \frac{y_0}{2}\left[ (x_0+\Delta x)(y_0-\Delta y) - (x_0-\Delta x)(y_0+\Delta y) \right]\nonumber\\ &&{}+ \frac{(x_0+\Delta x)^3 - (x_0-\Delta x)^3}{3}\nonumber\\ &&{}- \frac{1}{2} y_0r^2 \left( \tan^{-1} \frac{x_0+\Delta x}{y_0 - \Delta y} - \tan^{-1} \frac{x_0-\Delta x}{y_0 + \Delta y} \right) \end{eqnarray}

Derivation of the solution:

\begin{eqnarray} I^{circ}_{m,n} &=& \frac{1}{m+1}\int_{-\Delta y}^{\Delta y} dy y^n\left[(\sqrt{r^2-y_0^2-y^2-2y_0y}-x_0)^{m+1} - (-\Delta x)^{m+1}\right]\nonumber\\ &=& \frac{1}{m+1}\Bigg\{ \sum_{i=0}^{m+1} \binom{m+1}{i} Q_{i,n} (-x_0)^{m+1-i} \nonumber\\&&{}+ (-1)^m\frac{\Delta x^{m+1} \Delta y^{n+1}}{n+1}\left[1+(-1)^n\right] \Bigg\} \end{eqnarray}

Where:

\begin{equation} Q_{m,n}\equiv \int_{-\Delta y}^{\Delta y} y^n (r^2-y_0^2-y^2-2y_0y)^{m/2} dy \end{equation}

The $Q_{m,n}$ quantities clearly obey the following recursion relation:

\begin{equation} Q_{m,n}=(r^2-y_0^2)Q_{m-2,n} - 2y_0Q_{m-2,n+1} - Q_{m-2,n+2} \end{equation}

So a general solution only requires us to be able to calculate $Q_{0,n}$ and $Q_{1,n}$.

$Q_{0,n}$ is easy:

\begin{eqnarray} Q_{0,n}=P_n^{even}&=& \int_{-\Delta y}^{\Delta y} y^n dy\\ &=&\frac{2}{n+1}\left\{ \begin{array}{ll} 0 &, \quad n-\mathrm{odd}\\ \Delta y^{n+1} &, \quad n-\mathrm{even}\\ \end{array} \right. \end{eqnarray}

\begin{equation} Q_{1,n}=P_n^{odd}= \int_{-\Delta y}^{\Delta y} y^n \sqrt{r^2-y_0^2-y^2-2y_0y} dy\\ \end{equation}

Consider the following combination:

\begin{eqnarray*} y_0 P_{n-1}^{odd} + P_n^{odd} &=& \frac{1}{2} \int y^{n-1}2(y_0+y)\sqrt{r^2-y_0^2-y^2-2y_0y} dy\\ &=& -\frac{1}{2} \int y^{n-1}\sqrt{r^2-y_0^2-y^2-2y_0y} d(r^2-y_0^2-y^2-2y_0y)\\ &=& -\frac{1}{3} \int y^{n-1}d(r^2-y_0^2-y^2-2y_0y)^{3/2}\\ &=& -\frac{1}{3} \left[y^{n-1}\Lambda(y)\right]_{-\Delta y}^{\Delta y} +\frac{n-1}{3} \int y^{n-2}(r^2-y_0^2-y^2-2y_0y)^{3/2}dy\\ &=& -\frac{1}{3} \Delta y^{n-1}\left[\Lambda(\Delta y) + (-1)^n \Lambda(-\Delta y)\right] +\frac{n-1}{3} \left[ (r^2-y_0^2)P_{n-2}^{odd} - P_n^{odd} - 2y_0P_{n-1}^{odd} \right]\\ \Rightarrow (n+2)P_{n}^{odd} &=& -\Delta y^{n-1}\left[\Lambda^3(\Delta y) + (-1)^n \Lambda^3(-\Delta y)\right] + (n-1)(r^2-y_0^2)P_{n-2}^{odd} - (2n+1)y_0P_{n-1}^{odd} \end{eqnarray*}

Where $\Lambda(y)\equiv \sqrt{r^2-y_0^2-y^2-2y_0y}$.

So finally all we need is $P_0^{odd}$ and $P_1^{odd}$. From an online integrals table:

\[ \int \sqrt{a x^2 + b x + c}\ dx = \frac{b+2ax}{4a}\sqrt{ax^2+bx+c} + \frac{4ac-b^2}{8a^{3/2}}\ln \left| 2ax + b + 2\sqrt{a(ax^2+bx+c)}\right | \]

Therefore:

\begin{eqnarray*} P_0^{odd} &=& \int_{-\Delta y}^{\Delta y} \sqrt{r^2-y_0^2-y^2-2y_0y} dy\\ &=& \left\{\frac{y_0+y}{2}\sqrt{r^2-y_0^2-y^2-2y_0y} - \frac{i r^2}{2} \ln 2\left| y + y_0 - i\sqrt{r^2-y_0^2-y^2-2y_0y}\right| \right\}_{-\Delta y}^{\Delta y}\\ &=& \left\{\frac{y_0+y}{2}\sqrt{r^2-y_0^2-y^2-2y_0y} - \frac{i r^2}{2}\left[\ln 2 + \ln r - i \tan^{-1} \frac{\sqrt{r^2-y_0^2-y^2-2y_0y}}{y_0+y} \right] \right\}_{-\Delta y}^{\Delta y}\\ &=& \left[\frac{y_0+y}{2}\Lambda(y) - \frac{r^2}{2}\tan^{-1} \frac{\Lambda(y)}{y_0+y} \right]_{-\Delta y}^{\Delta y}\\ &=& \frac{y_0+\Delta y}{2}\Lambda(\Delta y) - \frac{y_0-\Delta y}{2}\Lambda(-\Delta y) +\frac{r^2}{2}\tan^{-1} \frac{\Lambda(-\Delta y)}{y_0-\Delta y} -\frac{r^2}{2}\tan^{-1} \frac{\Lambda(\Delta y)}{y_0+\Delta y} \end{eqnarray*}

From the same online integral table:

\begin{equation} \begin{split} \int &x \sqrt{a x^2 + bx + c}\ dx = \frac{1}{48a^{5/2}}\left ( 2 \sqrt{a} \sqrt{ax^2+bx+c} \right . \left( - 3b^2 + 2 abx + 8 a(c+ax^2) \right) \\ & \left. + 3(b^3-4abc)\ln \left|b + 2ax + 2\sqrt{a}\sqrt{ax^2+bx+c} \right| \right) \end{split} \end{equation}

Therefore (dropping constants as we go):

\begin{eqnarray*} P_1^{odd} &=& \int_{-\Delta y}^{\Delta y} y\sqrt{r^2-y_0^2-y^2-2y_0y} dy\\ &=& -\frac{i}{48}\Bigg\{ 2i\Lambda(y) \left[ -12y_0(y+y_0) - 8\Lambda^2(y)\right] - 24y_0r^2 \ln \left| y_0 + y - i\Lambda(y)\right| \Bigg\}_{-\Delta y}^{\Delta y}\\ &=& -\frac{i}{48}\Bigg\{ 2i\Lambda(y) \left[ -12y_0(y+y_0) - 8\Lambda^2(y)\right] + 24i y_0r^2 \tan^{-1} \frac{\Lambda(y)}{y_0 + y} \Bigg\}_{-\Delta y}^{\Delta y}\\ &=& \left\{ \frac{1}{2} y_0r^2 \tan^{-1} \frac{\Lambda(y)}{y_0 + y} -\frac{1}{6}\Lambda(y) \left[ 3y_0(y+y_0) + 2\Lambda^2(y)\right] \right\}_{-\Delta y}^{\Delta y} \end{eqnarray*}

Finally, note that from the drawing $\Lambda(\Delta y)=x-\Delta x$ and $\Lambda(-\Delta y)=x+\Delta x$, so:

\begin{eqnarray} P_n^{odd} &=& \frac{n-1}{n+2}(r^2-y_0^2)P_{n-2}^{even} - \frac{2n+1}{n+2}y_0P_{n-1}^{even}+\nonumber\\ &&{}+\frac{2\Delta y^{n-1}}{n+2}\times \left\{\begin{array}{l@{,}l} -x_0^3-3x_0\Delta x^2 & \quad n-\mathrm{even}\\ 3x_0^2\Delta x + \Delta x^3 & \quad n-\mathrm{odd}\\ \end{array}\right.\\ P_0^{odd} &=& \frac{1}{2}\left[ (y_0+\Delta y)(x-\Delta x) - (y_0-\Delta y)(x+\Delta y) \right]\nonumber\\ &&{}+ \frac{r^2}{2}\left[ \tan^{-1} \frac{x+\Delta x}{y_0-\Delta y} - \tan^{-1} \frac{x-\Delta x}{y_0+\Delta y} \right]\\ P_1^{odd} &=& \frac{y_0}{2}\left[ (x_0+\Delta x)(y_0-\Delta y) - (x_0-\Delta x)(y_0+\Delta y) \right]\nonumber\\ &&{}+ \frac{(x_0+\Delta x)^3 - (x_0-\Delta x)^3}{3}\nonumber\\ &&{}- \frac{1}{2} y_0r^2 \left( \tan^{-1} \frac{x_0+\Delta x}{y_0 - \Delta y} - \tan^{-1} \frac{x_0-\Delta x}{y_0 + \Delta y} \right) \end{eqnarray}

Checking the solution:

Checking this solution is much uglier, so we will only check the terms with $m+n<=2$, since those we already have from the integrals local polynomial PSFs, which have been extensively debugged.

m=n=0

Extracting from the code:

\begin{eqnarray*} I_{0,0}^{circ} &=& \frac{1}{2}\left[ r^2\gamma - 2(y_0-\Delta y)\Delta x - 2(x_0-\Delta x)\Delta y \right]\\ &=& \frac{r^2}{2}\gamma + 2 \Delta x \Delta y - y_0 \Delta x - x_0 \Delta y \end{eqnarray*}

Where $\gamma\equiv\tan^{-1} \frac{x_0+\Delta x}{y_0 - \Delta y} - \tan^{-1} \frac{x_0-\Delta x}{y_0 + \Delta y}$

And from the solution:

\begin{eqnarray*} I_{0,0}^{circ} &=& -x_0 Q_{0,0} + Q_{1,0} + 2 \Delta x \Delta y\\ &=& -2x_0\Delta y + \frac{1}{2}\left[ (y_0+\Delta y)(x_0-\Delta x) - (y_0-\Delta y)(x_0+\Delta x) \right] + \frac{r^2}{2}\gamma + 2\Delta x \Delta y\\ &=& -2x_0\Delta y + \frac{1}{2}\left[ x_0 y_0 - y_0\Delta x + x_0\Delta y - \Delta x \Delta y - x_0 y_0 - y_0\Delta x + x_0 \Delta y + \Delta x\Delta y \right] + 2\Delta x \Delta y + \frac{r^2}{2}\gamma\\ &=& -2 x_0\Delta y - y_0 \Delta x + x_0\Delta y + 2\Delta x \Delta y + \frac{r^2}{2}\gamma\\ &=& \frac{r^2}{2}\gamma + 2 \Delta x \Delta y - y_0 \Delta x - x_0 \Delta y \end{eqnarray*}

m=1, n=0

Extracting from the code:

\begin{eqnarray*} I_{1,0}^{circ} &=& -x_0\left[ \frac{r^2}{2}\gamma + 2\Delta x \Delta y - y_0\Delta x - x_0 \Delta y \right] + \frac{(y_0+\Delta y)^3-(y_0-\Delta y)^3}{3} - 2x_0\Delta x(y_0-\Delta y)\\ &=& -\frac{x_0 r^2}{2}\gamma -2 x_0 \Delta x\Delta y + x_0 y_0\Delta x + x_0^2\Delta y + \frac{y_0^3}{3} + y_0^2\Delta y + y_0 \Delta y^2 + \frac{\Delta y^3}{3} - \frac{y_0^3}{3} + y_0^2\Delta y - y_0\Delta y^2 + \frac{\Delta y^3}{3} - 2x_0y_0\Delta x + 2x_0\Delta x\Delta y\\ &=& -\frac{x_0r^2}{2}\gamma + x_0^2\Delta y + 2y_0^2\Delta y + \frac{2}{3}\Delta y^3 - x_0y_0\Delta x\\ &=& -\frac{x_0r^2}{2}\gamma + x_0^2\Delta y + x_0y_0\Delta x + \frac{2}{3}\Delta y^3\\ \end{eqnarray*}

Where the last step uses $x_0\Delta x=y_0\Delta y$.

From the solution:

\begin{eqnarray*} I_{1,0}^{circ} &=& \frac{1}{2}\left\{ x_0^2Q_{0,0} - 2x_0Q_{1,0} + Q_{2,0} - 2\Delta x^2 \Delta y \right\}\\ &=& \frac{1}{2}\left\{ 2x_0^2\Delta y - x_0 \left[ (y_0+\Delta y)(x_0-\Delta x) - (y_0-\Delta y)(x_0+\Delta x) \right] - x_0r^2\gamma + Q_{2,0} - 2\Delta x^2 \Delta y \right\}\\ &=& \frac{1}{2}\left\{ 2x_0^2\Delta y - x_0(x_0 y_0 - y_0 \Delta x + x_0 \Delta y - \Delta x \Delta y -x_0 y_0 - y_0 \Delta x + x_0 \Delta y + \Delta x \Delta y) - x_0 r^2\gamma + 2 r^2 \Delta y - 2y_0^2\Delta y - \frac{2\Delta y^3}{3} - 2 \Delta x^2 \Delta y \right\}\\ &=& \frac{1}{2}\left\{ 2x_0^2\Delta y + 2 x_0 y_0 \Delta x - 2 x_0^2\Delta y - x_0r^2\gamma + 2r^2\Delta y - 2 y_0^2\Delta y - \frac{2\Delta y^3}{3} -2 \Delta x^2\Delta y \right\}\\ &=& x_0 y_0 \Delta x + (r^2-y_0^2)\Delta y - \frac{\Delta y^3}{3} - \Delta x^2 \Delta y - \frac{x_0 r^2}{2} \gamma\\ &=& x_0 y_0 \Delta x + (x_0^2 + \Delta x^2 + \Delta y^2)\Delta y - \frac{\Delta y^3}{3} - \Delta x^2 \Delta y - \frac{x_0 r^2}{2}\gamma\\ &=& x_0 y_0 \Delta x + x_0^2 \Delta y + \frac{2\Delta y^3}{3} - \frac{x_0 r^2}{2}\gamma \end{eqnarray*}

Where the above uses:

\begin{eqnarray*} Q_{2,0} &=& (r^2-y_0^2) Q_{0,0} - 2 y_0 Q_{0,1} - Q_{0,2} = 2(r^2-y_0^2)\Delta y - \frac{2\Delta y^3}{3}\\ r^2 &=& x_0^2 + y_0^2 + \Delta x^2 + \Delta y^2 \end{eqnarray*}

m=0, n=1

Extracting from the code:

\[ I_{1,0}^{circ} = -y_0\left[ \frac{r^2}{2}\gamma + 2\Delta x \Delta y - y_0\Delta x - x_0 \Delta y \right] + \frac{(x_0+\Delta x)^3-(x_0-\Delta x)^3}{3} - 2y_0\Delta y(x_0-\Delta x) \]

Which is the same as $I_{1,0}^{circ}$, but with ( $x_0$, $y_0$, $\Delta x$, $\Delta y$) substituted with ( $y_0$, $x_0$, $\Delta y$, $\Delta x$), so the final expression must be:

\[ I_{1,0}^{circ} = -\frac{y_0r^2}{2}\gamma + y_0^2\Delta x + x_0y_0\Delta y + \frac{2}{3}\Delta x^3 \]

From the solution:

\begin{eqnarray*} I_{1,0}^{circ} &=& -x_0 Q_{0,1} + Q_{1,1} = Q_{1,1}\\ &=& \frac{y_0}{2}\left[ (x_0+\Delta x)(y_0-\Delta y) - (x_0-\Delta x)(y_0+\Delta y) \right] + \frac{(x_0+\Delta y)^3 - (x_0-\Delta x)^3}{3} - \frac{y_0 r^2}{2}\gamma\\ &=& \frac{y_0}{2} \left[ x_0 y_0 - x_0\Delta y + y_0 \Delta x - \Delta x\Delta y -x_0 y_0 - x_0\Delta y + y_0 \Delta x + \Delta x \Delta y \right] + \frac{x_0^3}{3} + x_0^2\Delta x + x_0\Delta x^2 + \frac{\Delta x^3}{3} - \frac{x_0^3}{3} + x_0^2\Delta x - x_0\Delta x^2 + \frac{\Delta x^3}{3} - \frac{y_0 r^2}{2}\gamma\\ &=& -x_0 y_0 \Delta y + y_0^2\Delta x + 2x_0^2\Delta x + \frac{2\Delta x^3}{3} - \frac{y_0 r^2}{2}\gamma\\ &=& y_0^2\Delta x + x_0 y_0 \Delta y + \frac{2\Delta x^3}{3} - \frac{y_0 r^2}{2}\gamma \end{eqnarray*}

The (m, n)=(2, 0), (1, 1) and (0, 2) expressions contain way too many terms to handle manually, so I fed the to Mathematica which confirmed that they reproduce the expressions in the code.

Piecewise PSF pieces

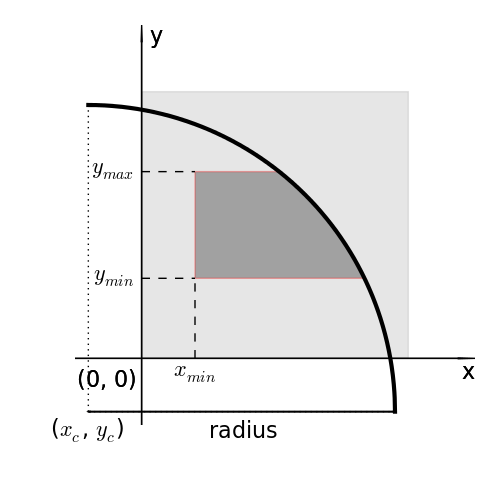

The implementation of piecewise PSFs makes use of integrals over more general areas than those defined above. The task can be split into rectangle and wedge integrals, but with x and y defined relative to an arbitrary point.

The integral we wish to compute is:

\begin{equation} I^{circ}_{m,n}\equiv \int_{y_{min}}^{y_{max}} dy \int_{x_{min}}^{\sqrt{r^2-(y-y_c)^2}+x_c} dx x^m y^n \end{equation}

The solution:

\begin{eqnarray*} I^{circ}_{m,n} &=& \frac{1}{m+1}\Bigg\{ \sum_{i=0}^{m+1} \binom{m+1}{i} Q_{i,n} x_c^{m+1-i} \nonumber\\&&{}- \frac{x_{min}^{m+1}(y_{max}^{n+1}-y_{min}^{n+1})}{n+1} \Bigg\}\\ Q_{m,n}&=&(r^2-y_c^2)Q_{m-2,n} + 2y_cQ_{m-2,n+1} - Q_{m-2,n+2}\\ Q_{0,n}=P_n^{even}&=& \frac{y_{max}^{n+1}-y_{min}^{n+1}}{n+1}\\ Q_{1,n}=P_n^{odd}&=& \frac{1}{n+2}\Big\{ R_n(y_{min})-R_n(y_{max}) + (2n+1)y_cP_{n-1}^{odd} + (n-1)(r^2-y_c^2)P_{n-2}^{odd} \Big\}\\ P_0^{odd}&=&\frac{1}{2} \sqrt{r^2-(y_c-y_{max})^2}(y_{max}-y_c) - \frac{1}{2} \sqrt{r^2-(y_c-y_{min})^2} (y_{min}-y_c) -\\ && -\frac{1}{2} r^2 \left( \tan^{-1}\left[ \frac{y_c-y_{max}}{\sqrt{r^2-(y_c-y_{max})^2}} \right] -\tan^{-1}\left[ \frac{y_c-y_{min}}{\sqrt{r^2-(y_c-y_{min})^2}} \right] \right)\\ P_1^{odd}&=&-\frac{1}{6} \sqrt{r^2-(y_c-y_{max})^2} \left(2 r^2+y_c^2+y_c y_{max}-2 y_{max}^2\right)+\\ &&+\frac{1}{6} \sqrt{r^2-(y_c-y_{min})^2} \left(2 r^2+y_c^2+y_c y_{min}-2 y_{min}^2\right)-\\ &&- \frac{1}{2} r^2 y_c \left( \tan^{-1}\left[ \frac{y_c-y_{max}}{\sqrt{r^2-(y_c-y_{max})^2}} \right] - \tan^{-1}\left[ \frac{y_c-y_{min}}{\sqrt{r^2-(y_c-y_{min})^2}} \right] \right) \end{eqnarray*}

Derivation of the solution:

\begin{eqnarray} I^{circ}_{m,n} &=& \frac{1}{m+1}\int_{y_{min}}^{y_{max}} dy y^n\left[(\sqrt{r^2-(y-y_c)^2}+x_c)^{m+1} - x_{min}^{m+1}\right]\nonumber\\ &=& \frac{1}{m+1}\Bigg\{ \sum_{i=0}^{m+1} \binom{m+1}{i} Q_{i,n} x_c^{m+1-i} \nonumber\\&&{}- \frac{x_{min}^{m+1}(y_{max}^{n+1}-y_{min}^{n+1})}{n+1} \Bigg\} \end{eqnarray}

Where:

\begin{equation} Q_{m,n}\equiv \int_{y_{min}}^{y_{max}} y^n \left[r^2-(y-y_c)^2\right]^{m/2} dy \end{equation}

The $Q_{m,n}$ quantities clearly obey the following recursion relation:

\begin{equation} Q_{m,n}=(r^2-y_c^2)Q_{m-2,n} + 2y_cQ_{m-2,n+1} - Q_{m-2,n+2} \end{equation}

Just as above: $Q_{0,n}$ is easy:

\begin{eqnarray} Q_{0,n}=P_n^{even}&=& \int_{y_{min}}^{y_{max}} y^n dy\\ &=&\frac{1}{n+1}\left[y_{max}^{n+1}-y_{min}^{n+1}\right] \end{eqnarray}

And:

\begin{equation} Q_{1,n}=P_n^{odd}= \int_{y_{min}}^{y_{max}} y^n \sqrt{r^2-(y-y_c)^2} dy\\ \end{equation}

\begin{eqnarray*} P_n^{odd} - y_cP_{n-1}^{odd} &=& \int_{y_{min}}^{y_{max}} (y-y_c)y^{n-1}\sqrt{r^2-(y-y_c)^2} d(y-y_c)\\ &=& \frac{1}{2}\int_{y_{min}}^{y_{max}} y^{n-1}\sqrt{r^2-(y-y_c)^2} d(y-y_c)^2\\ &=& -\frac{1}{3}\int_{y_{min}}^{y_{max}} y^{n-1} d[r^2-(y-y_c)^2]^{3/2}\\ &=& -\frac{1}{3}\left\{ y^{n-1}\left[r^2-(y-y_c)^2\right]^{3/2} \right\}_{y_{min}}^{y_{max}} + \frac{n-1}{3}\int_{y_{min}}^{y_{max}} y^{n-2} \left[r^2-(y-y_c)^2\right]^{3/2} dy\\ &=& -\frac{1}{3}\left\{ y^{n-1}\left[r^2-(y-y_c)^2\right]^{3/2} \right\}_{y_{min}}^{y_{max}} + \frac{n-1}{3}\left\{ (r^2-y_c^2)P_{n-2} + 2y_cP_{n-1} - P_n \right\} \end{eqnarray*}

Letting $R_n(y)\equiv\left\{ y^{n-1}\left[r^2-(y-y_c)^2\right]^{3/2} \right\}_{y_{min}}^{y_{max}}$:

\[ (n+2)P_n^{odd} = -R_n(y) + (2n+1)y_cP_{n-1}^{odd} + (n-1)(r^2-y_c^2)P_{n-2}^{odd} \]

Using Mathematica:

\[ P_0^{odd}=\frac{1}{2} \sqrt{r^2-(y_c-y_{max})^2}(-y_c+y_{max}) + \frac{1}{2} \sqrt{r^2-(y_c-y_min)^2} (y_c-y_{min}) - \frac{1}{2} r^2 \left( \tan^{-1}\left[ \frac{y_c-y_{max}}{\sqrt{r^2-(y_c-y_{max})^2}} \right] -\text{ArcTan}\left[ \frac{y_c-y_{min}}{\sqrt{r^2-(y_c-y_{min})^2}} \right] \right) \]

\[ P_1^{odd}=-\frac{1}{6} \sqrt{r^2-(y_c-y_{max})^2} \left(2 r^2+y_c^2+y_c y_{max}-2 y_{max}^2\right) + \frac{1}{6} \sqrt{r^2-(y_c-y_{min})^2} \left(2 r^2+y_c^2+y_c y_{min}-2 y_{min}^2\right) - \frac{1}{2} r^2 y_c \left( \tan^{-1}\left[ \frac{y_c-y_{max}}{\sqrt{r^2-(y_c-y_{max})^2}} \right] - \tan^{-1}\left[ \frac{y_c-y_{min}}{\sqrt{r^2-(y_c-y_{min})^2}} \right] \right) \]

The solution was checked by implementing it in Machematica and checknig $P_n^{odd}$, $Q_{m,n}$ and $I_{m,n}^{circ}$ againts the actual integral expressions for a few m, and n values.

Integrating <strong>useless</strong> circle pieces

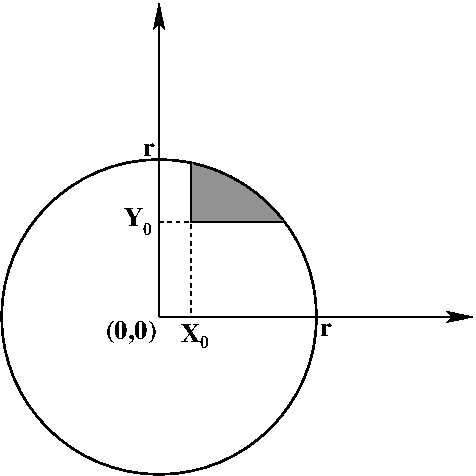

I derived the integral over the following area as well due to not thinking through what is actually needed:

The integral we wish to compute is:

\begin{equation} I^{circ}_{m,n}\equiv \int_{y_0}^{y_{max}} dy \int_{x_0}^{\sqrt{r^2-y^2}} dx x^m y^n \end{equation}

where $y_{max}\equiv\sqrt{r^2-x_0^2}$. Similarly we define $x_{max}\equiv\sqrt{r^2-y_0^2}$.

The solution:

\begin{eqnarray} I^{circ}_{m,n} &=& \frac{1}{m+1}\left(Q_{m,n} - x_0^{m+1}P^{odd}_n \right)\\ Q_{2k+1,n} &=& \sum_{i=0}^{k+1} {k+1 \choose i} r^{2(k+1-i)} (-1)^i P^{odd}_{n+2i}\\ P^{odd}_n &=& \frac{y_{max}^{n+1} - y_0^{n+1}}{n+1}\\ Q_{2k,n} &=& \sum_{i=0}^{k} {k \choose i} r^{2(k-i)} (-1)^i P^{even}_{n+2i}\\ P^{even}_n &=& \frac{1}{n+2} \left(y_0^{n-1}x_{max}^3 - y_{max}^{n-1}x_0^3\right) + \frac{n-1}{n+2}r^2P^{even}_{n-2}\\ P^{even}_0 &=& \frac{1}{2}\left[y_{max}x_0 - y_0x_{max} + r^2\left(\tan^{-1}\frac{y_{max}}{x_0} - \tan^{-1}\frac{y_0}{x_{max}}\right) \right]\\ P^{even}_1 &=& \frac{1}{3}\left(x_{max}^3 - x_0^3\right) \end{eqnarray}

The $Q_{m,n}$ quantities satisfy the following identity:

\[ Q_{m+2,n}=r^2 Q_{m,n}-Q_{m,n+2} \]

See below for proof.

This allows the same solution to be written in a different form:

\begin{eqnarray} I^{circ}_{m,n} &=& \frac{1}{m+1}\left(Q_{m,n} - x_0^{m+1}P^{odd}_{n} \right)\\ Q_{m,n} &=& r^2 Q_{m-2,n}-Q_{m-2,n+2}\\ Q_{1,n} &=& r^2 P^{odd}_{n} - P^{odd}_{n+2}\\ Q_{0,n} &=& P^{even}_n\\ \end{eqnarray}

Where $P^{even}_n$ and $P^{odd}_n$ are the same quantities as above.

Derivation of the solution:

\begin{eqnarray} I^{circ}_{m,n}&=&\frac{1}{m+1}\int_{y_0}^{y_{max}} dy y^n \left[ (r^2-y^2)^{(m+1)/2} - x_0^{m+1}\right]\\ &=& \frac{1}{m+1}\left[Q_{m,n} - \frac{x_0^{m+1}}{n+1} \left(y_{max}^{n+1} - y_0^{n+1}\right)\right] \end{eqnarray}

Where:

\begin{equation} Q_{m,n}\equiv\int_{y_0}^{y_{max}} dy y^n (r^2-y^2)^{(m+1)/2} \end{equation}

At this point we need to consider two separate cases.

Case 1: \f$m=2k+1\f$ with \f$k \in \mathbb{Z}^+\f$

\begin{eqnarray} Q_{2k+1,n} &=&\int_{y_0}^{y_{max}} y^n (r^2-y^2)^{k+1} dy\\ &=&\int_{y_0}^{y_{max}} y^n \sum_{i=0}^{k+1} r^{2(k+1-i)} (-1)^i y^{2i} dy \end{eqnarray}

Which gives:

\begin{equation} Q_{2k+1,n}=\sum_{i=0}^{k+1} {k+1 \choose i} r^{2(k+1-i)} (-1)^i \frac{y_{max}^{n+2i+1} - y_0^{n+2i+1}}{n+2i+1} \end{equation}

Case 2: \f$m=2k\f$ with \f$k \in \mathbb{Z}^+\f$

\begin{eqnarray} Q_{2k,n} &=&\int_{y_0}^{y_{max}} y^n (r^2-y^2)^k \sqrt{r^2-y^2} dy\\ &=&\int_{y_0}^{y_{max}} y^n \sum_{i=0}^{k} {k \choose i} r^{2(k-i)} y^{2i}(-1)^i \sqrt{r^2-y^2}\\ &=&\sum_{i=0}^{k} {k \choose i} r^{2(k-i)} (-1)^i P^{even}_{n+2i} \end{eqnarray}

With:

\begin{equation} P^{even}_n\equiv\int_{y_0}^{y_{max}} y^n\sqrt{r^2-y^2} dy \end{equation}

\begin{eqnarray} P^{even}_n &=&\frac{1}{2} \int_{y_0}^{y_{max}} y^{n-1} \sqrt{r^2-y^2} dy^2\\ &=&-\frac{1}{3} \int_{y_0}^{y_{max}} y^{n-1} d(r^2-y^2)^{3/2}\\ &=&\frac{1}{3}\bigg\{ y_0^{n-1}x_{max}^3 - y_{max}^{n-1} x_0^3 + \nonumber\\ &&\quad\quad {}+(n-1)\int_{y_0}^{y_{max}} y^{n-2}(r^2-y^2)\sqrt{r^2-y^2}dy \bigg\}\\ &=&\frac{1}{3}\left\{ y_0^{n-1} x_{max}^3 - y_max^{n-1}x_0^3 + (n-1)r^2P^{even}_{n-2} - (n-1)P^{even}_n \right\} \end{eqnarray}

So we end up with:

\begin{equation} P^{even}_n=\frac{1}{n+2} \left(y_0^{n-1}x_{max}^3 - y_{max}^{n-1}x_0^3\right) + \frac{n-1}{n+2}r^2P^{even}_{n-2} \end{equation}

So in order to be able to calculate any $P^{even}_n$ we need $P^{even}_0$ and $P^{even}_1$:

\begin{eqnarray} P^{even}_0 &=& \int_{y_0}^{y_{max}} \sqrt{r^2-y^2} dy \\ &=& \frac{1}{2}\left[y_{max}x_0 - y_0x_{max} + r^2\left(\tan^{-1}\frac{y_{max}}{x_0} - \tan^{-1}\frac{y_0}{x_{max}}\right) \right] \end{eqnarray}

\begin{eqnarray} P^{even}_1 &=& \int_{y_0}^{y_{max}} y\sqrt{r^2-y^2} dy\\ &=& -\frac{1}{2}\int_{y_0}^{y_{max}}\sqrt{r^2-y^2} d(r^2-y^2)\\ &=& \frac{1}{3}\left(x_{max}^3 - x_0^3\right) \end{eqnarray}

Checking the solution:

The best way to test if I made any errors in deriving the above is to differentiate the result and see if we get what we expect.

In particular we expect:

\[ \frac{\partial I^{circ}_{m,n}}{\partial x_0} = \int_{y_0}^{y_{max}} dy x_0^m y^n = -x_0^m\frac{y_{max}^{n+1} - y_0^{n+1}}{n+1} \]

And

\[ \frac{\partial I^{circ}_{m,n}}{\partial y_0} = -y_0^n\frac{x_{max}^{m+1} - x_0^{m+1}}{m+1} \]

Two useful identities:

\[ \frac{\partial y_{max}}{\partial x_0}=-\frac{x_0}{y_max} \quad\mathrm{and}\quad \frac{\partial x_{max}}{\partial y_0}=-\frac{y_0}{x_max} \]

The derivative with respect to \f$x_0\f$:

From our solution:

\begin{eqnarray*} \frac{\partial I^{circ}_{m,n}}{\partial x_0} &=& \frac{\partial}{\partial x_0}\left\{ \frac{1}{m+1}\int_{y_0}^{y_{max}} dy y^n \left[ Q_{m,n} - \frac{x_0^{m+1}}{n+1} \left(y_{max}^{n+1} - y_0^{n+1}\right) \right] \right\}\\ &=& \frac{1}{m+1}\frac{\partial Q_{m,n}}{\partial x_0} - x_0^m\frac{y_{max}^{n+1}-y_0^{n+1}}{n+1} + \frac{x_0^{m+2}y_{max}^{n-1}}{m+1} \end{eqnarray*}

Since the second term is exactly what we want, we need the following to be satisfied:

\[ \frac{\partial Q_{m,n}}{\partial x_0} = -x_0^{m+2}y_{max}^{n-1} \]

From the solution:

\begin{eqnarray*} \frac{\partial Q_{2k+1,n}}{\partial x_0} &=& -\sum_{i=0}^{k+1} {k+1 \choose i} r^{2(k+1-i)} (-1)^i x_0 y_{max}^{n+2i-1}\\ &=& -x_0 y_{max}^{n-1} \sum_{i=0}^{k+1} {k+1 \choose i} (r^2)^{k+1-i} (-y_{max}^2)^i\\ &=& -x_0 y_{max}^{n-1}\left(r^2-y_{max}^2\right)^{k+1}\\ &=& -x_0^{2k+3} y_{max}^{n-1} \end{eqnarray*}

Which is exactly what we needed.

Also from the solution:

\begin{eqnarray*} \frac{\partial Q_{2k,n}}{\partial x_0} &=& \sum_{i=0}^{k} {k \choose i} r^{2(k-i)} (-1)^i \frac{\partial P^{even}_{n+2i}}{\partial x_0}\\ \end{eqnarray*}

So we need:

\begin{eqnarray*} \sum_{i=0}^{k} {k \choose i} r^{2(k-i)} (-1)^i \frac{\partial P^{even}_{n+2i}}{\partial x_0} &=& -x_0^{2k+2}y_{max}^{n-1}\\ &=& -x_0^2 y_{max}^{n-1} \sum_{i=0}^{i=k} {k \choose i} r^{2(k-i)} (-1)^i y_{max}^{2i} \end{eqnarray*}

which translates to:

\[ \frac{\partial P^{even}_{n+2i}}{\partial x_0} = -x_0^2 y_{max}^{n+2i-1} \]

or

\[ \frac{\partial P^{even}_n}{\partial x_0} = -x_0^2 y_{max}^{n-1} \]

First:

\begin{eqnarray*} \frac{\partial P^{even}_0}{\partial x_0} &=& \frac{1}{2}\left\{ y_{max} - \frac{x_0^2}{y_{max}} - r^2 \frac{1}{1+\frac{y_{max}^2}{x_0^2}} \left[ \frac{1}{y_{max}} + \frac{y_{max}}{x_0^2} \right] \right\}\\ &=& \frac{1}{2y_{max}}\left\{ y_{max}^2 - x_0^2 - r^2 \frac{x_0^2}{x_0^2+y_{max}} \left[ \frac{1} + \frac{y_{max}^2}{x_0^2} \right] \right\}\\ &=& \frac{1}{2y_{max}}\left( y_{max}^2 - x_0^2 - r^2\right)\\ &=& -\frac{x_0^2}{y_{max}} \end{eqnarray*}

which is exactly what we needed.

which is also what we needed.

Finally:

\begin{eqnarray*} \frac{\partial P^{even}_n}{\partial x_0} &=& \frac{1}{n+2} \left((n-1)y_{max}^{n-3}x_0^4 - 3y_{max}^{n-1}x_0^2\right) + \frac{n-1}{n+2}r^2 \frac{\partial P^{even}_{n-2}}{\partial x_0}\\ &=& \frac{y_{max}^{n-3}x_0^2}{n+2} \left((n-1)x_0^2 - 3y_{max}^2\right) - \frac{n-1}{n+2}r^2 y_{max}^{n-3}x_0^2\\ &=& \frac{y_{max}^{n-3}x_0^2}{n+2} \left((n-1)x_0^2 - 3y_{max}^2 - (n-1)r^2\right)\\ &=& -y_{max}^{n-1}x_0^2 \end{eqnarray*}

Which is the last piece we needed for the derivative with respect to $x_0$.

The derivative with respect to \f$y_0\f$:

From our solution:

\[ \frac{\partial I^{circ}_{m,n}}{\partial y_0} = \frac{1}{m+1}\left( \frac{\partial Q_{m,n}}{\partial y_0} + x_0^{m+1} y_0^n \right) \]

So we need:

\[ \frac{\partial Q_{m,n}}{\partial y_0} = -x_{max}^{m+1} y_0^n \]

From the solution:

\begin{eqnarray*} \frac{\partial Q_{2k+1,n}}{\partial y_0} &=& -\sum_{i=0}^{k+1} {k+1 \choose i} r^{2(k+1-i)} (-1)^i y_0^{n+2i}\\ &=& -y_0^n (r^2-y_0^2)^{k+1}\\ &=& -x_max^{2k+2} y_0^n \end{eqnarray*}

Exactly what we need.

Also from the solution:

\[ \frac{\partial Q_{2k,n}}{\partial y_0} = \sum_{i=0}^{k} {k \choose i} r^{2(k-i)} (-1)^i \frac{\partial P^{even}_{n+2i}}{\partial y_0} \]

So we need:

\begin{eqnarray*} \sum_{i=0}^{k} {k \choose i} r^{2(k-i)} (-1)^i \frac{\partial P^{even}_{n+2i}}{\partial y_0}\\ &=& -x_{max}^{2k+1}y_0^n\\ &=& -x_{max}\sum_{i=0}^{k} {k \choose i} r^{2(k-i)} (-1)^i y_0^{n+2i} \end{eqnarray*}

In other words we must show that:

\[ \frac{\partial P^{even}_n}{\partial y_0}=-x_{max} y_0^n \]

First:

\begin{eqnarray*} \frac{\partial P^{even}_0}{\partial y_0} &=& \frac{1}{2}\left[\frac{y_0^2}{x_{max}} - x_{max} -r^2 \frac{1}{1+\frac{y_0^2}{x_{max}^2}} \left( \frac{1}{x_{max}} + \frac{y_0^2}{x_{max}^3} \right) \right]\\ &=& \frac{1}{2x_{max}}\left[ y_0^2 - x_{max}^2 - r^2\frac{x_{max}^2}{x_{max}^2+y_0^2} \frac{x_{max}^2 + y_0^2}{x_{max}^2} \right]\\ &=& \frac{1}{2x_{max}}\left[ y_0^2 - x_{max}^2 - r^2 \right]\\ &=& -x_{max} \end{eqnarray*}

Which matches our expectation.

Which also matches.

Finally, assuming $\frac{\partial P^{even}_{n-2}}{\partial y_0} = -x_{max} y_0^{n-2}$ :

\begin{eqnarray*} \frac{\partial P^{even}_n}{\partial y_0} &=& \frac{1}{n+2} \left((n-1) y_0^{n-2}x_{max}^3 - 3 y_0^n x_{max}\right) + \frac{n-1}{n+2}r^2 \frac{\partial P^{even}_{n-2}}{\partial y_0}\\ &=& \frac{1}{n+2} \left((n-1) y_0^{n-2}x_{max}^3 - 3 y_0^n x_{max}\right) - \frac{n-1}{n+2}r^2 x_{max} y_0^{n-2}\\ &=& \frac{x_{max}}{n+2}\left((n-1) y_0^{n-2}x_{max}^2 - 3 y_0^n - (n-1)r^2 y_0^{n-2} \right)\\ &=& -x_{max} y_0^n \end{eqnarray*}

Which was the last missing piece.

Deriving the relation between \f$Q_{m,n}\f$ quantities.

For odd $m$:

\begin{eqnarray*} Q_{2k+3,n} &=& \sum_{i=0}^{k+2} {k+2 \choose i} r^{2(k+2-i)} (-1)^i P^{odd}_{n+2i}\\ &=& \sum_{i=0}^{k+2} \left[{k+1 \choose i} + {k+1 \choose i-1}\right] r^{2(k+2-i)} (-1)^i P^{odd}_{n+2i}\\ &=& r^2 Q_{2k+1,n} + \sum_{i=1}^{k+2} {k+1 \choose i-1} r^{2(k+2-i)} (-1)^i P^{odd}_{n+2i}\\ &=& r^2 Q_{2k+1,n} - \sum_{i=0}^{k+1} {k+1 \choose i} r^{2(k+1-i)} (-1)^i P^{odd}_{n+2+2i}\\ &=& r^2 Q_{2k+1,n} - Q_{2k+1,n+2} \end{eqnarray*}

For even $m$:

\begin{eqnarray*} Q_{2k+2,n} &=& \sum_{i=0}^{k+1} {k+1 \choose i} r^{2(k+1-i)} (-1)^i P^{even}_{n+2i}\\ &=& \sum_{i=0}^{k+1} \left[{k \choose i} + {k \choose i-1}\right] r^{2(k+1-i)} (-1)^i P^{even}_{n+2i}\\ &=& r^2Q_{2k,n} + \sum_{i=1}^{k+1} {k \choose i-1} r^{2(k+1-i)} (-1)^i P^{even}_{n+2i}\\ &=& r^2Q_{2k,n} - \sum_{i=0}^{k} {k \choose i} r^{2(k-i)} (-1)^i P^{even}_{n+2+2i}\\ &=& r^2Q_{2k,n} - Q_{2k,n+2} \end{eqnarray*}

Actually, this relation is obvious from the definition of $Q_{m,n}$.
